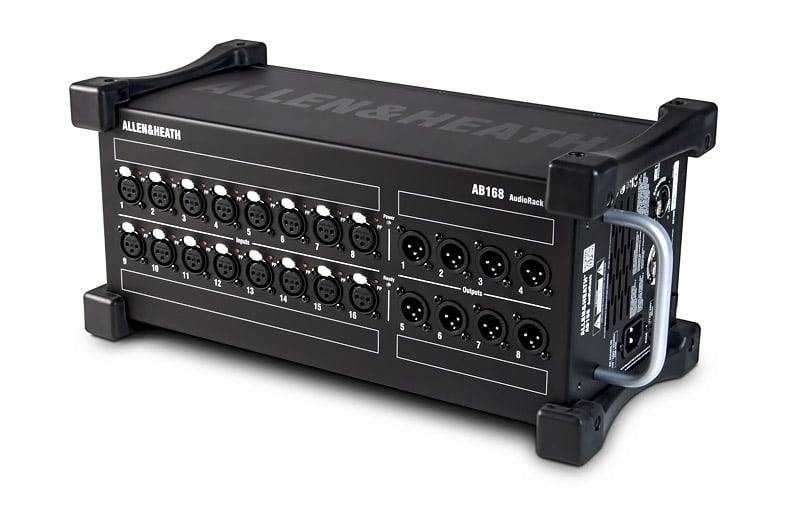

Allen & Heath AB168 DIGITAL STAGEBOX

AB168 is a portable AudioRack, providing 16 XLR inputs and 8 XLR outputs when connected to a GLD-80 or GLD-112 mixer, or to an AR2412 AudioRack.

Featuring 16 mic preamps with Phantom Power indicators and 8 XLR line outs, AB168 runs on Allen & Heath’s proprietary dSNAKE protocol.

The AB168 unit connects over a single Cat5 cable to the GLD mixer or to an AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the GLD system.

48kHz
16 Mic Preamps
8 XLR Line Outs
Expander port for daisy-chaining of 2 AB168 Expanders or connection ME personal mixers
Optional 19-inch rack mount kit available
Compatible with CAT5e (or higher) cables of up to 120m
Rubber bumpers
Carry handle
